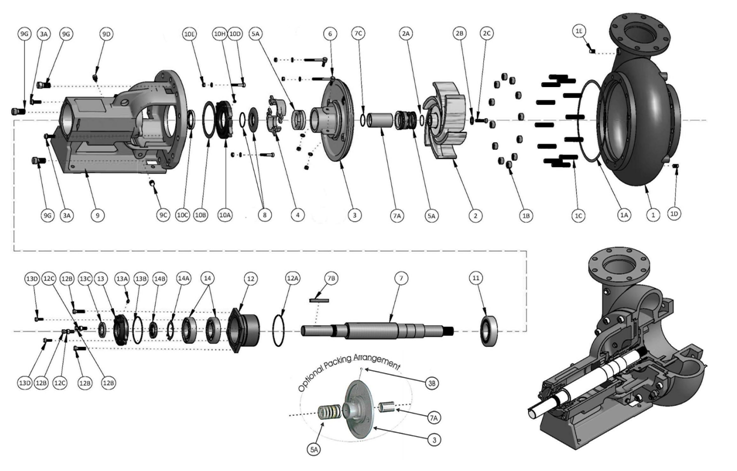

1*

1

See below

Casing

QT600-3

1A

1

10399-46-1

648403012

Gasket,casing

Vellumoid

0.01

1B

12

3932-61

648402014

Nut,casing

Stl

0.05

1C

12

3862-76

648401115

Stud,casing

Stl

0.16

1D

1

8505-04-01

86485503

Plug,Casing Drain

Stl

0.03

1E

1

8505-04-01

646400507

Plug,flush line

Iron

0.03

2*

1

See below

Impeller

QT600-3

2A

1

19110-72

648405082

Seal,impeller

Viton

0.002

2B

1

7300239

Washer,impeller

Stl

0.02

2C

1

7415648

Bolt,impeler lock

Stl

0.15

3*#

1

22223-01-30

641116157

Stuffing box,mech.seal

QT600-3

20

3*&

1

20614-01-30

643365042

Stuffing box,packed

QT600-3

20

3A

2

3861-117

648401016

Bolt,stuffing box

Stl

0.05

3B&

1

19368-01

601499403

Grease fitting

Stl

0.01

4

1

20622A

641103338

Gland assy,packing

Bronze

1

5A#

1

22451-1

648414308

Seal,mechanical

Tungsten
  carbide

1

5A~

3

25014-04M-B

661007005

Packing, Shaft - M.S.   Backup

Graphite/acrylic

0.04

6

2

B3701A

601102494

Bolt assy,gland

Stl

0.15

7

1

20612-02-33

646490557

Shaft

42CrMo

17

7A

1

20943-04A

641103437

Sleeve,shaft

38CrMoAl

1

7B

1

4371-05-21

601212392

Key,shaft

Stl

0.11

7C

1

23444-01-72

648415156

Seal,shaft sleeve

Viton

0.005

8

1

22210-1A

641116108

Deflector assembly

Bronze

0.4

9

1

20618-12-1

644302499

Frame,grease lubricated

Cast iron

80

9C

1

8505-05

601474737

Plug, Frame Drain

Stl

0.033

9D

1

8267-01

601473689

Breather

Stl

0.2

9G

3

2538-1H

Bolt,casing jack

Stl

0.16

10A

1

20626A

641103361

Cover,inboard bearing

Iron

2.6

10B

1

20625

648408706

Gasket,I.B.Brg.Cover

Vegetable fiber

0.01

10C

1

20619-01

648408300

Oil seal, I.B.Brg.Cover

Buna-n

0.06

10D

2

3861-1

601407505

Bolt, I.B.Brg.Cover

Stl

0.03

10E

2

3932-2

601408560

Nut, I.B.Brg.Cover

Stl

0.007

10H

1

19368-01

648411908

Grease fitting

Stl

0.01

11

1

20615-1

648408102

Bearing,inboard

Vendor

4.1

12

1

20624-01-01

644308504

Housing,O.B.bearing

Iron

6

12A

1

7496-253

648402295

Seal, O.B.Brg.housing

Buna-n

0.01

12B

4

3861-138

648401057

Bolts, O.B.Brg.housing

Stl

0.05

12C

2

3932-62

658404702

Nut, O.B.Brg.
  housing jam

Stl

0.016

13

1

20617A

641103296

Cover,O.B.Bearing

Iron

1.8

13A

1

19368-01

661010020

Grease zerk, O.B.Brg.Cover

Stl

0.01

13B

1

7496-26

072200017

O-ring, O.B.Brg.Cover

Buna-n

0.01

13C

1

20619-02

648408359

Oil seal, O.B.Brg.Cover

Buna-n

0.04

13D

2

3861-139

648401081

Bolt, O.B.Brg.Cover

Stl

0.025

14

2

20616-1

648408201
  S

Bearing, O.B.

Vendor

1.5

14A

1

6124-4

648402105

Lockwasher,O.B.Bearing

Stl

0.01

14B

1

6123-4

648402055

Locknut, O.B.Bearing

Stl

0.22

Casings

1*

1

19203-01-30A

641101753

Casing,3×2×13

QT600-3

55

1*

1

19205-01-30A

641101902

Casing,4×3×13

QT600-3

57

1*

1

19222-01-30A

641102058

Casing,5×4×14

QT600-3

85

1*

1

19122-01-30A

641101456

Casing,6×5×11

QT600-3

90

1*

1

19123-01-30A

641101605

Casing, 6×5×14

QT600-3

95

1*

1

19763-01-30A

641102157

Casing, 8×6×11

QT600-3

97

1*

1

19117-01-30A

641101308

Casing,8×6×14

QT600-3

125

1*

1

20937-01-30A

641102322

Casing,10×8×14

QT600-3

155

Impellers

2*

1

19204-XX-30

641215603

Impeller,3×2×13

QT600-3

9

2*

1

19206-XX-30

641217005

Impeller,4×3×13

QT600-3

12.5

2*

1

19224-XX-30

641217831

Impeller,5×4×14

QT600-3

13

2*

1

19121-XX-30

641211602

Impeller,6×5×11

QT600-3

14

2*

1

19121-XX-30

641212105

Impeller, 6×5×14

QT600-3

18

2*

1

19121-XX-30

641211602

Impeller, 8×6×11

QT600-3

18

2*

1

19116-XX-30

641209903

Impeller,8×6×14

QT600-3

20

2*

1

21867-XX-30

641221007

Impeller,10×8×14

QT600-3

20
